Human PTPRN(Protein Tyrosine Phosphatase Receptor Type N) ELISA Kit
One-click to copy product information
ELK0912
Size： Price：
48 T $320.00
96 T $458.00
96 T*5 $1947.00
Manual MSDS Send email to us

Overview

Product name: Human PTPRN(Protein Tyrosine Phosphatase Receptor Type N) ELISA Kit
Reactivity: Human
Alternative Names: PTPRN; IA2; ICA512; PTPRN; R-PTP-N; CA512; IA2; lA-2; IA-2; PTP; ICA 512; ICA3; ICA512; islet cell antigen 2; Islet cell antigen 512; lslet cell autoantigen 3; protein tyrosine phosphatase; receptor type, N; protein tyrosine phosphatase-like N; PTP IA-2; receptor-type tyrosine-protein phosphatase-like N; R-PTP-N
Assay Type: Sandwich
Sensitivity: 0.119 ng/mL
Standard: 20 ng/mL
Detection Range: 0.32-20 ng/mL
Sample Type: Tissue homogenates, cell lysates and other biological fluids.
Assay Length: 3.5h
Research Area: Signal transduction;CD & Adhesion molecule;Tumor immunity;Infection immunity;
Uniprot ID: Q16849
Test principle: The test principle applied in this kit is Sandwich enzyme immunoassay. The microtiter plate provided in this kit has been pre-coated with an antibody specific to Human PTPRN. Standards or samples are added to the appropriate microtiter plate wells then with a biotin-conjugated antibody specific to Human PTPRN. Next, Avidin conjugated to Horseradish Peroxidase (HRP) is added to each microplate well and incubated. After TMB substrate solution is added, only those wells that contain Human PTPRN, biotin-conjugated antibody and enzyme-conjugated Avidin will exhibit a change in color. The enzyme-substrate reaction is terminated by the addition of sulphuric acid solution and the color change is measured spectrophotometrically at a wavelength of 450nm ± 10nm. The concentration of Human PTPRN in the samples is then determined by comparing the OD of the samples to the standard curve.

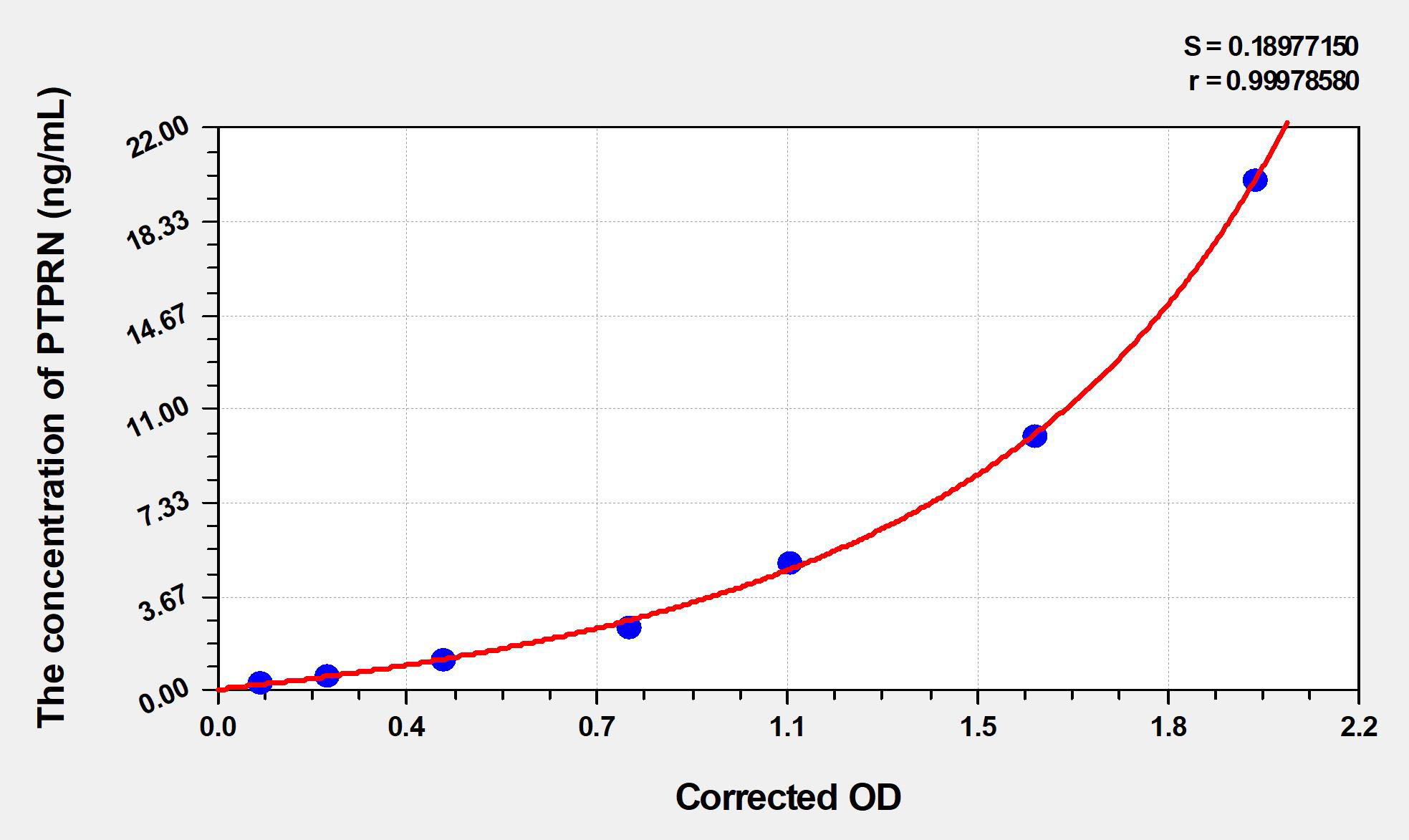

Standard curve

Concentration (ng/mL) OD Corrected OD
20.00 2.121 2.012
10.00 1.694 1.585
5.00 1.219 1.110
2.50 0.907 0.798
1.25 0.547 0.438
0.63 0.325 0.216
0.32 0.193 0.084
0.00 0.109 0.000

Precision

Intra-assay Precision (Precision within an assay)：CV%<8%

Three samples of known concentration were tested twenty times on one plate to assess intra-assay precision.

Inter-assay Precision (Precision between assays)：CV%<10%

Three samples of known concentration were tested in forty separate assays to assess inter-assay precision.

Recovery

Matrices listed below were spiked with certain level of recombinant PTPRN and the recovery rates were calculated by comparing the measured value to the expected amount of PTPRN in samples.
Matrix Recovery range Average
serum(n=5) 90-107% 98%
EDTA plasma(n=5) 82-98% 90%
Heparin plasma(n=5) 85-99% 92%

Linearity

The linearity of the kit was assayed by testing samples spiked with appropriate concentration of PTPRN and their serial dilutions. The results were demonstrated by the percentage of calculated concentration to the expected.
Matrix 1:2 1:4 1:8 1:16
serum(n=5) 82-96% 95-102% 89-101% 95-104%
EDTA plasma(n=5) 93-102% 88-102% 95-102% 81-93%
Heparin plasma(n=5) 85-95% 82-91% 86-93% 81-94%
