Human HSP47(Heat Shock Protein 47) ELISA Kit
ELK3506
Size： Price：
48 T $320.00
96 T $458.00
Download ① Send email to us

Overview

Product name: Human HSP47(Heat Shock Protein 47) ELISA Kit
Reactivity: Human
Alternative Names: CBP2; AsTP3; CBP1; PIG14; RA-A47; SERPINH1; SERPINH2; Colligen; Gp46; Serpin Peptidase Inhibitor Clade H Member 1; Heat Shock Protein 47; Collagen Binding Protein 2
Assay Type: Sandwich
Sensitivity: 50 pg/mL
Standard: 8000 pg/mL
Detection Range: 125-8000 pg/mL
Sample Type: Serum, plasma, tissue homogenates, cell lysates and other biological fluids
Assay Length: 3.5h
Research Area: Developmental science;
Uniprot ID: P50454
Test principle: The test principle applied in this kit is Sandwich enzyme immunoassay. The microtiter plate provided in this kit has been pre-coated with an antibody specific to Human HSP47. Standards or samples are added to the appropriate microtiter plate wells then with a biotin-conjugated antibody specific to Human HSP47. Next, Avidin conjugated to Horseradish Peroxidase (HRP) is added to each microplate well and incubated. After TMB substrate solution is added, only those wells that contain Human HSP47, biotin-conjugated antibody and enzyme-conjugated Avidin will exhibit a change in color. The enzyme-substrate reaction is terminated by the addition of sulphuric acid solution and the color change is measured spectrophotometrically at a wavelength of 450nm ± 10nm. The concentration of Human HSP47 in the samples is then determined by comparing the OD of the samples to the standard curve.

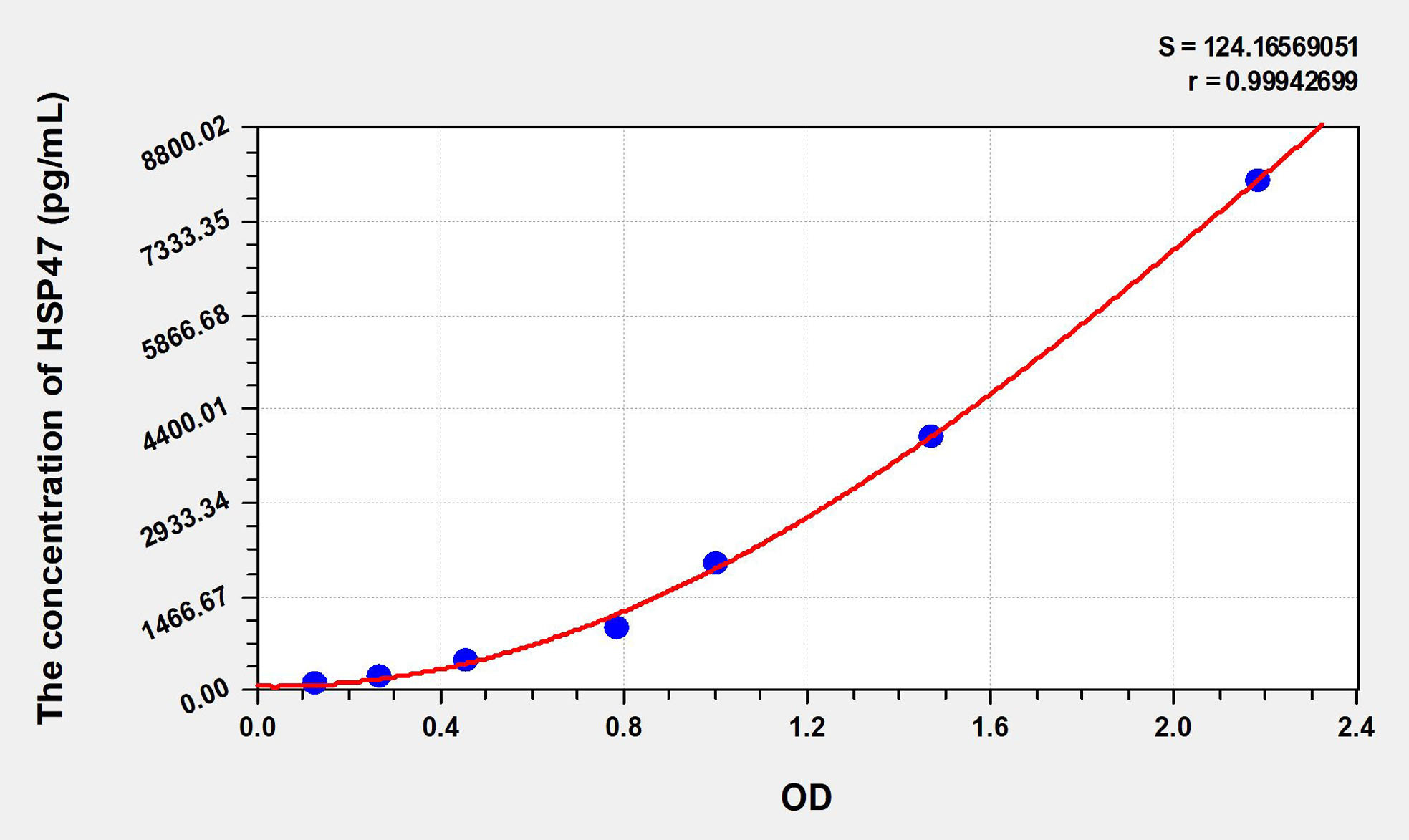

Standard curve

Concentration (pg/mL) OD Corrected OD
8000.00 2.266 2.173
4000.00 1.556 1.463
2000.00 1.088 0.995
1000.00 0.872 0.779
500.00 0.547 0.454
250.00 0.357 0.264
125.00 0.221 0.128
0.00 0.093 0.000

Precision

Intra-assay Precision (Precision within an assay)：CV%<8%

Three samples of known concentration were tested twenty times on one plate to assess intra-assay precision.

Inter-assay Precision (Precision between assays)：CV%<10%

Three samples of known concentration were tested in forty separate assays to assess inter-assay precision.

Recovery

Matrices listed below were spiked with certain level of recombinant HSP47 and the recovery rates were calculated by comparing the measured value to the expected amount of HSP47 in samples.
Matrix Recovery range Average
serum(n=5) 95-107% 101%
EDTA plasma(n=5) 81-95% 88%
Heparin plasma(n=5) 88-96% 92%

Linearity

The linearity of the kit was assayed by testing samples spiked with appropriate concentration of HSP47 and their serial dilutions. The results were demonstrated by the percentage of calculated concentration to the expected.
Matrix 1:2 1:4 1:8 1:16
serum(n=5) 83-92% 85-96% 93-99% 95-102%
EDTA plasma(n=5) 80-97% 81-92% 87-103% 82-93%
Heparin plasma(n=5) 95-104% 82-96% 92-105% 83-92%
